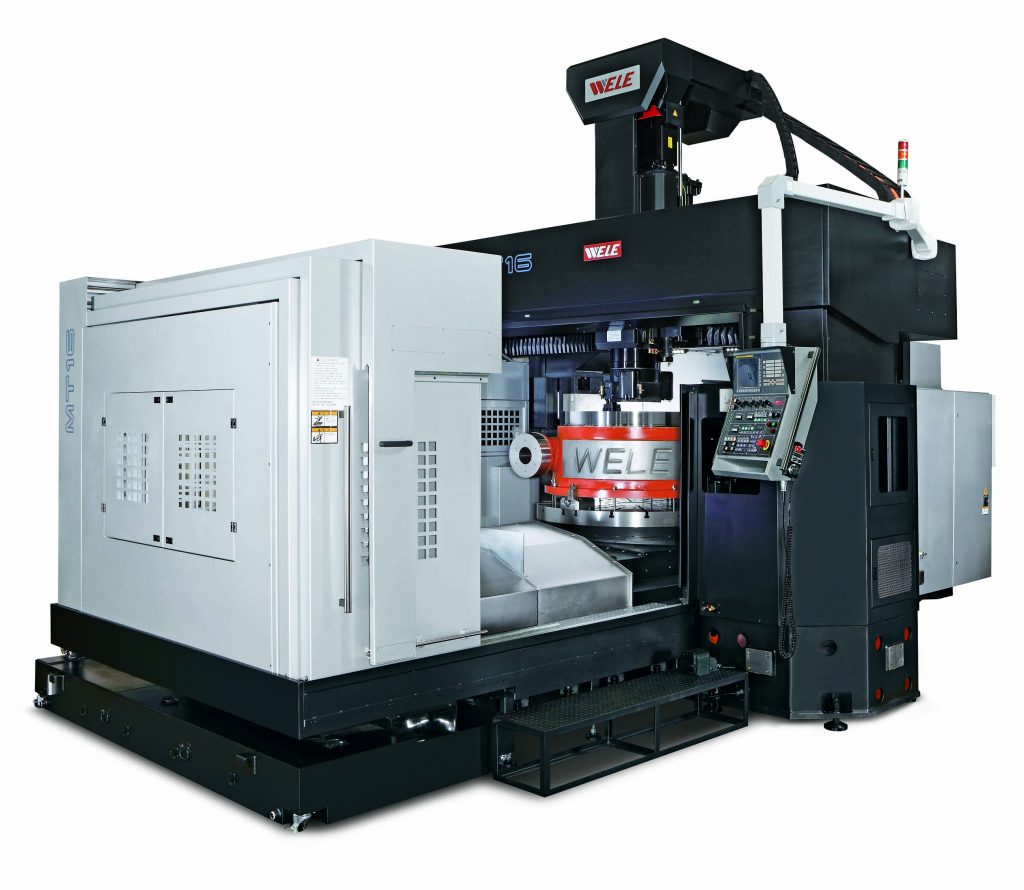

Serie MT
Imágenes
Features
| TYPE | MT-16/MT-16W | MT-20/MT-20W | |
| X axis | mm | 2.800 | 3.200 |
| Y axis | mm | MT-16: 2.600 MT-16W: 3.060 | MT-20: 3.000 MT-20W: 4.000 |
| Z axis | mm | 800 | |
| W axis (only for MT-W) | mm | 1.000 | |
| Table Diameter | mm | 1.600 | 2.000 |
| Max. Turning height | mm | MT: 700 MT-W: 1.700 | |
| Max. Swing diameter | mm | 2.100 | 2.500 |
| Distance between columns | mm | 2.308 | 2.708 |
| Milling spindle unit | |||
| Spindle speed | rpm | 10-6.000 / 10.2400 | |
| Spindle motor | Kw | 22/26 | |
| Spindle torque | Nm | 626/740 | |
| Spindle taper | - | BT 50 | |
| Turning & indexing table unit | |||
| Turning table speed | rpm | 10-280 | 10-200 |
| Turning table motor | Kw | 37/44 | 44/52 |
| Turning table loading | Kg | 12.000 | 15.000 |
| Rapid feedrate X/Y | m/min | 15/20 | 15/18 |
| Rapid feedrate Z/W | m/min | 15/3 | |
