Vertical Lathes
VL46 | VL66 | VL86 | VL100 | ||
---|---|---|---|---|---|
Ø máx. allowed | mm | 560 | 800 | 1.000 | 1.300 |
Ø máx. turning | mm | 560/450 | 760 | 860 | 1.100 |
Turning height | mm | 440/400 | 750/620 | 80 | 1.000 |
Revolutions | rpm | 25-2.500 | 25-2.000 | 25-1.500 | 5-580 |
Motor power | Kw | 18.5/22 | 30/37 | 18,5/11(22/30) | 37/45 (45/55) |
TYPE A | -Upper disc with 8 or 12 tools -Standard-position left plate -R-position right plate -RT-Machine with two plates |
||||

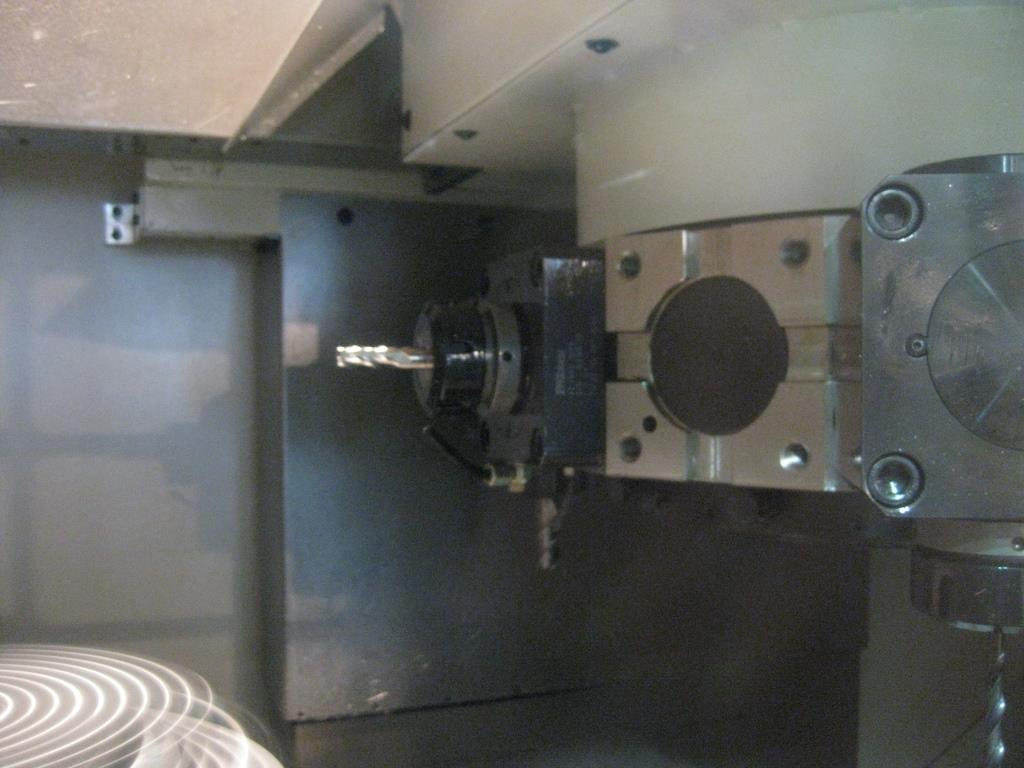

TYPE H | - Vertical rotation turret with 4 positions (V4) or 6 positions (V6) - Non-rotating |
||||
TYPE F | - Vertical rotation turret with 8 position motorised tools(V8) | ||||
TYPE M | - Upper horizontal disk with 12 positions - Motorised tools |
