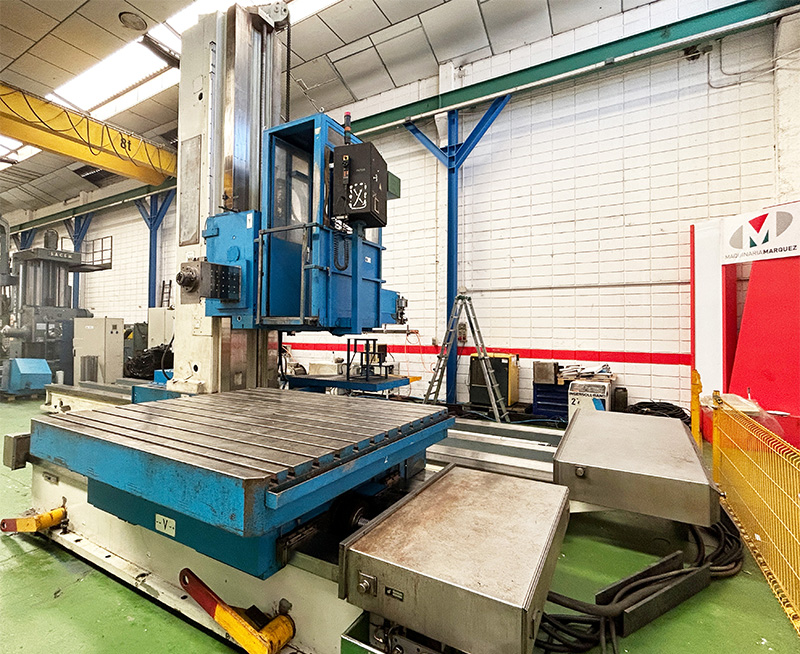

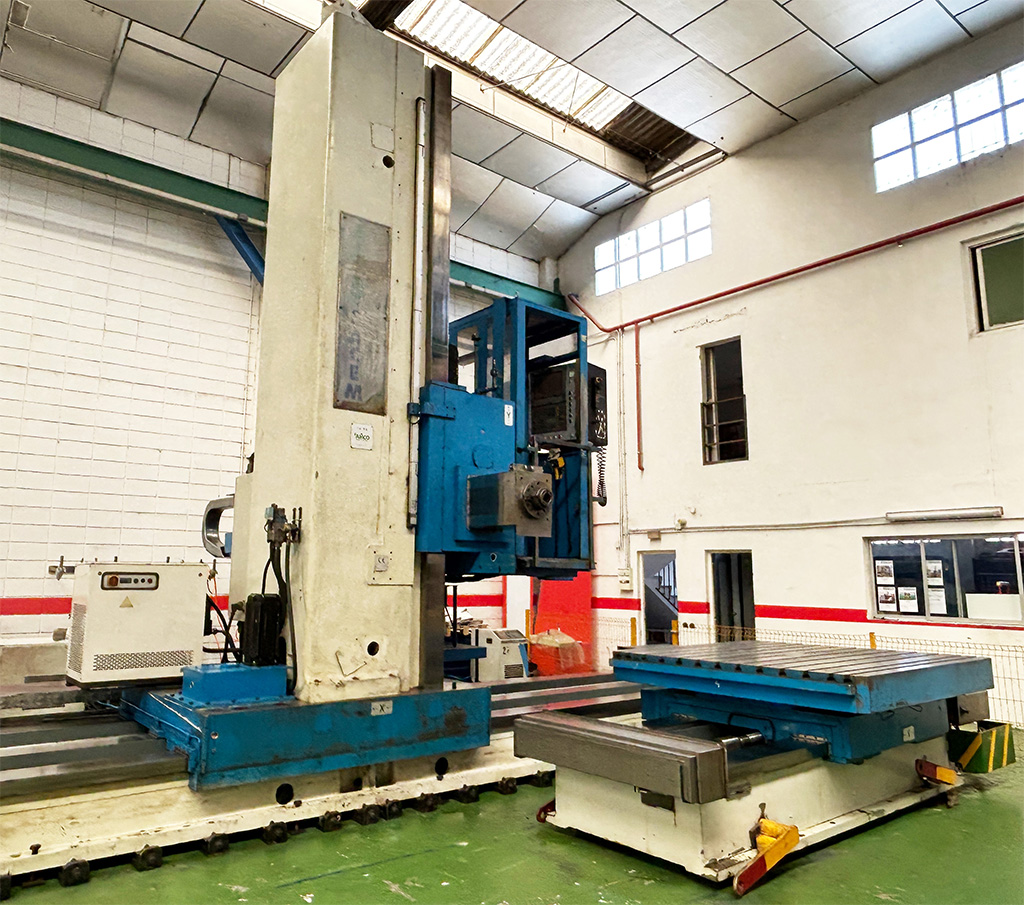

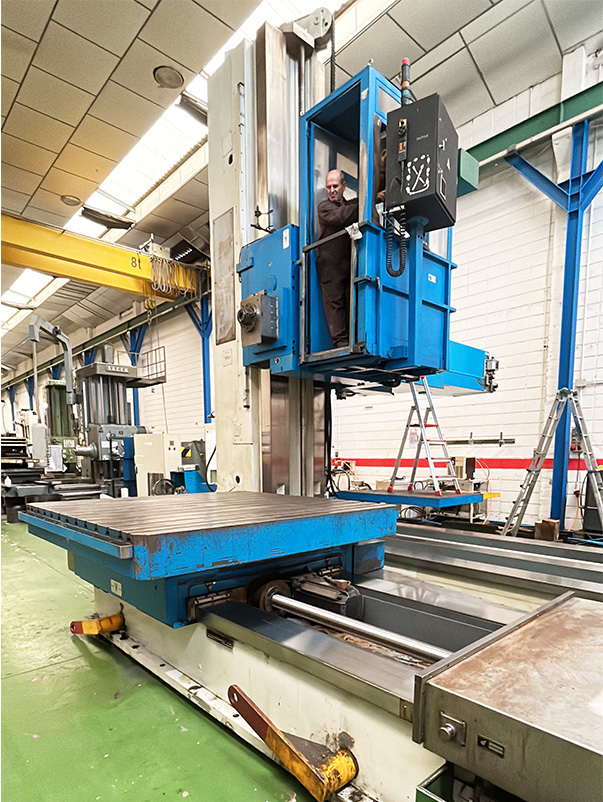

Boring Machine CNC Amco Sacem Racem 601

Ref: 3853
Boring Machine CNC Amco Sacem Racem 601

Boring Machine CNC Amco Sacem Racem 601 Boring Machine CNC Amco Sacem Racem 601

Technical Details
Travels
Axis X – Traverse Column mm 6.000
Axis Y – Headstok vertical travel mm 3.000

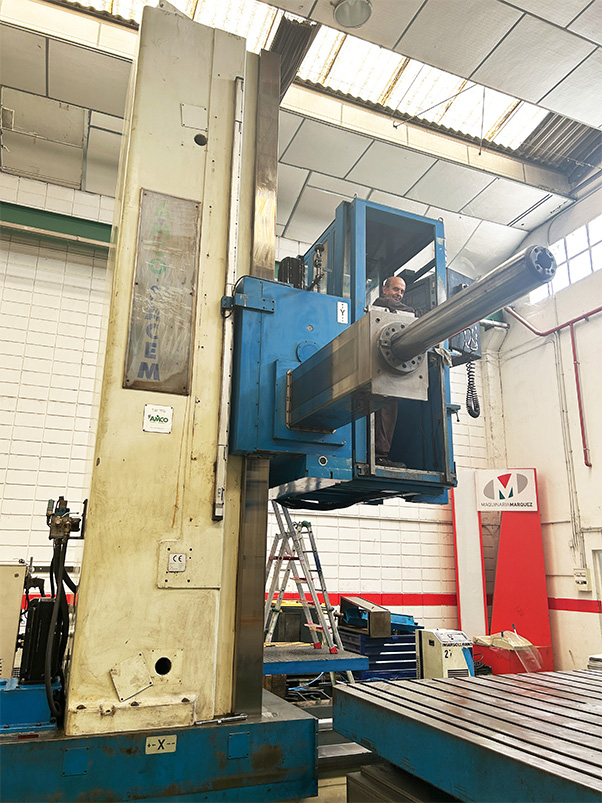

Axis Z – RAM Stroke mm 1.000
Axis W – Spindle Stroke mm 1.000
RAM size mm 350×400
Headstock
Work spindle diameter mm 160
Spindle Taper ISO 50 / DIN-69871-A
Spindle speed range Rpm 4 a 1.600
Main motor power Kw 60
Torque on spindle Nm 8.430
Feed
Working feed mm/min 3 a 10.000
Rapid Feed mm/min 10.000
Automatic rotary table with longitudinal travel model MGL-1600 Aerostatic
Table Surface mm 2.000×2.000
Longitudinal travel mm 1.500
Maximum workpiece weight Kg 20.000
Floor plates
Dimensions (2 units) mm 4.000×2.000
Loading capacity Kg/m2 20.000
Accesories
·      Universal Head CH-61
·      Spindle support
·      Facing Head
·      Chip conveyor
·      Cooling
Notes
Total installed power 135 kW
Approx. weight of the machine 90 Tn
