Features
MODEL | WRD 13 CNC | |
COURSES | ||
X – Column longitudinal travel | mm | 3000-20000, in sections of 1000 |
Y – Headstock vertical travel | mm | 2000, 2500, 3000 |
Z –RAM stroke | mm | 700 |
HEADSTOCK | ||
Tool-holding slide diameter | mm | 320×400 |
Work spindle diameter | mm | 130 |
W – Spindle stroke | mm | 650 |
Main motor power S1/S6 | Kw | 37/46 |
Work spindle speed range | 1/min | 10-3000 |
Torque on spindle S1/S6 | Nm | 2535/3111 |
FEEDS | ||
X | mm/min | 21000 |
Y,Z,W | mm/min | 10000 |

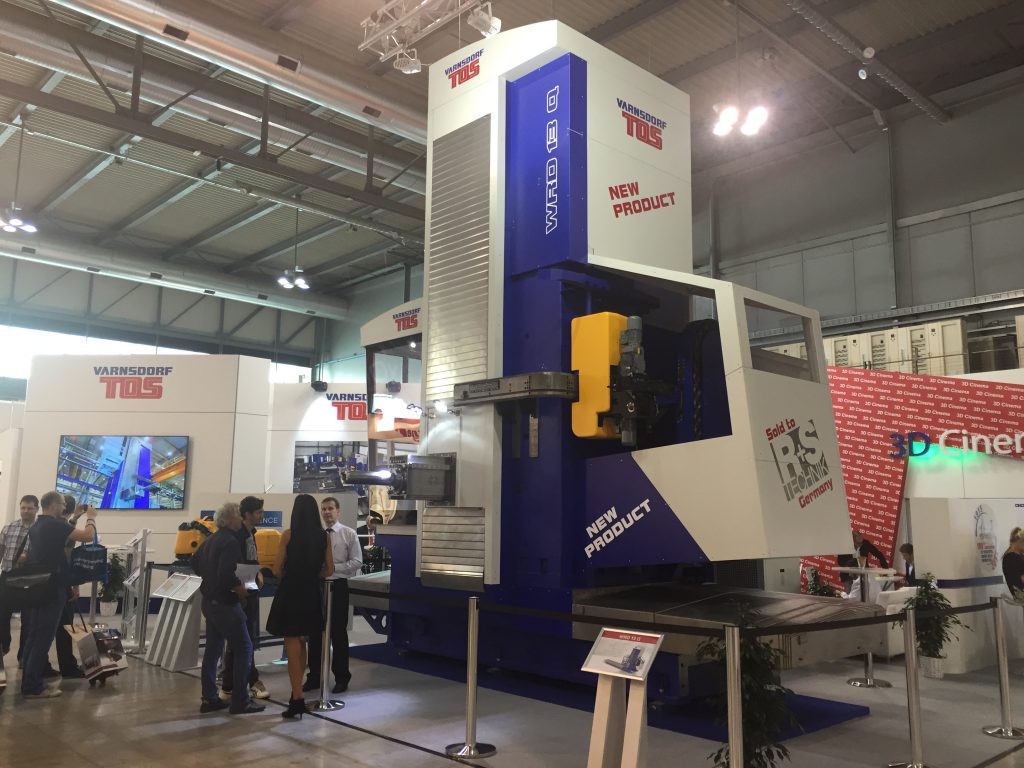

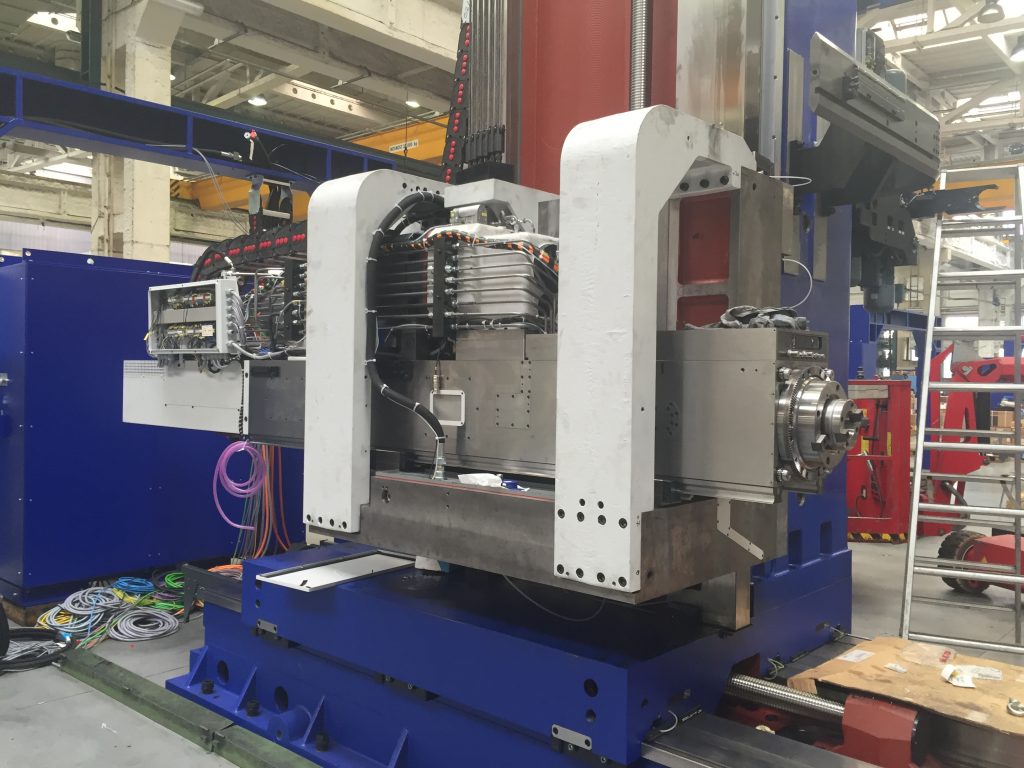

- The WRD 13 column boring mill is a machine based on the well known WHN 13 cross table milling machine. Movement along the longitudinal X axis is done using a linear guide activated by two motors working in a master – slave relationship. Vertical movement is done using prismatic guides made of non-friction (SKG-Turcite) plastic on the counter-guides.

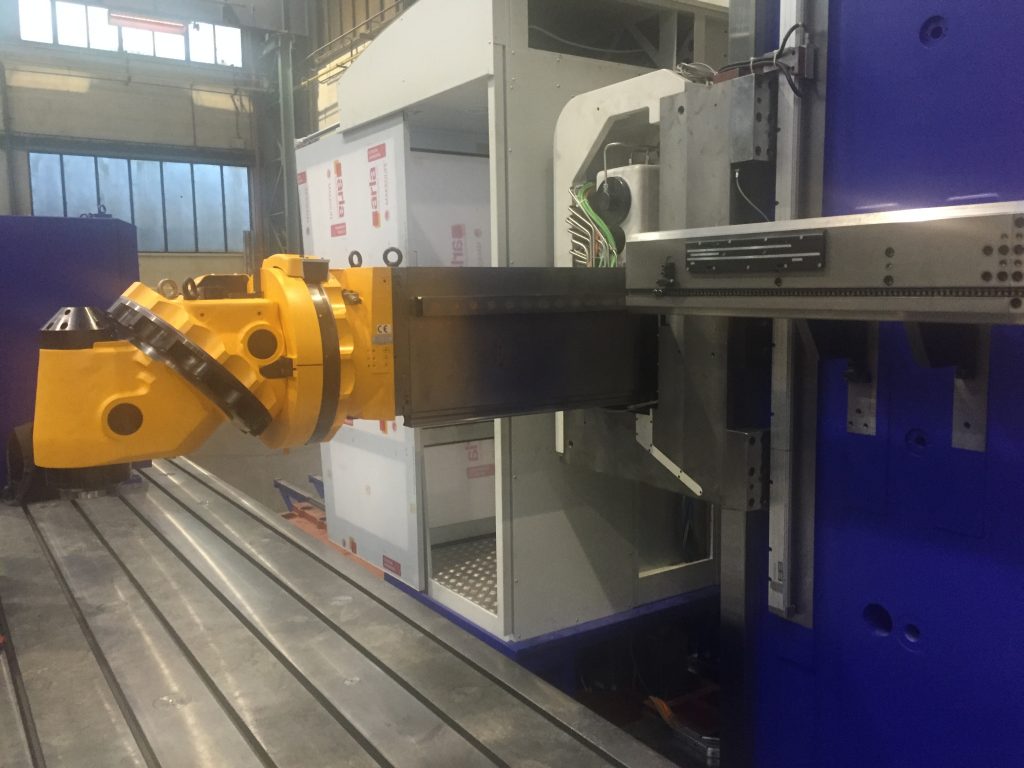

- This machine is perfect for jobs where the part being machined is small or medium sized and, with automatic heads installed, it can also do the work of a light column mill.
