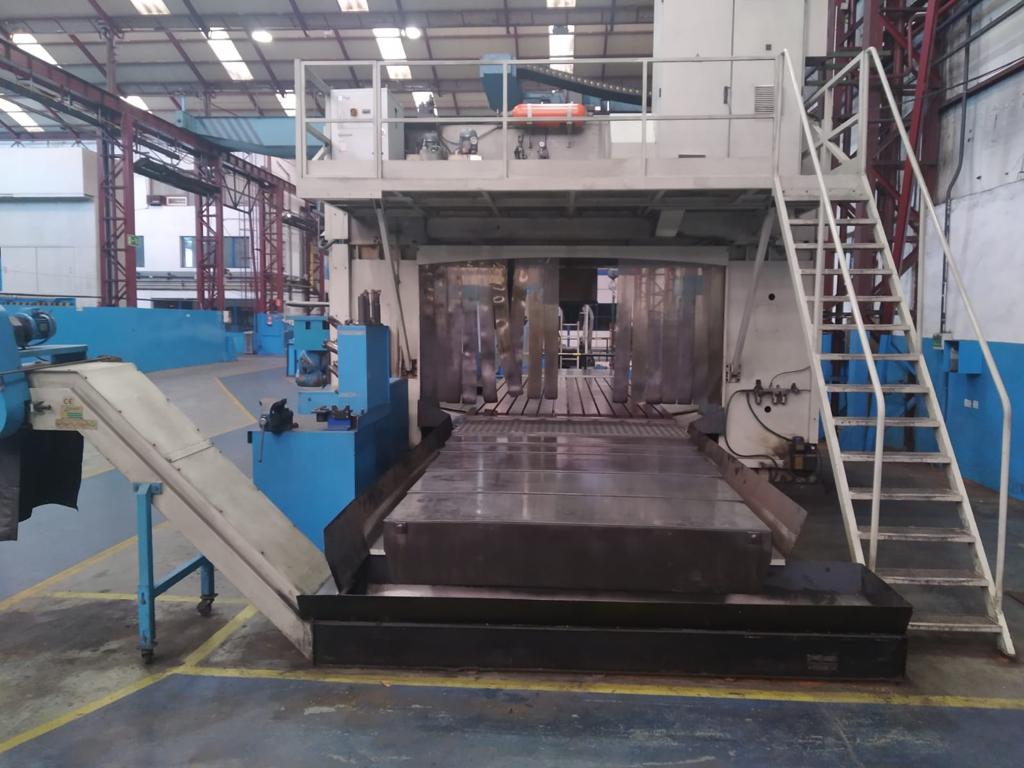

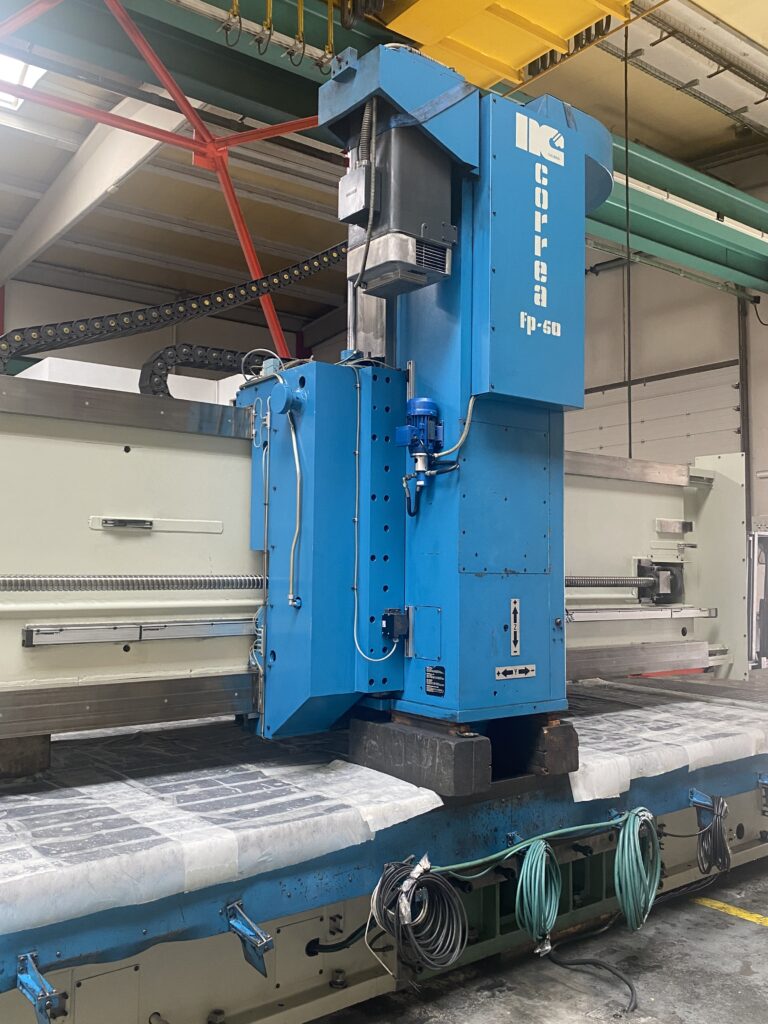

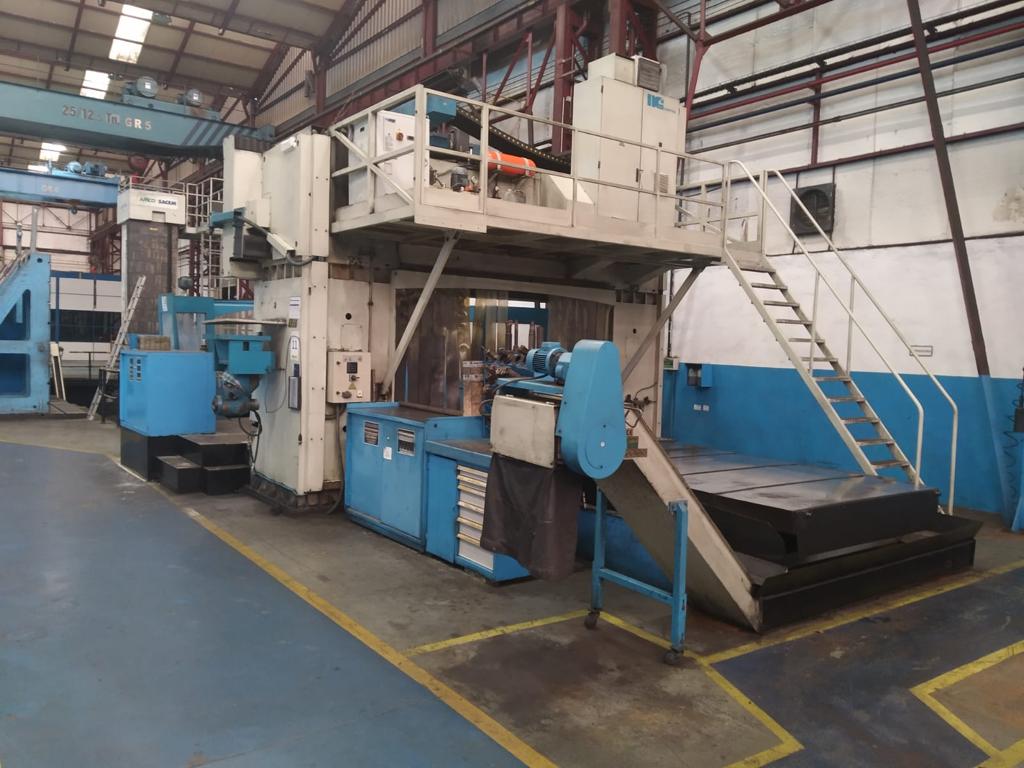

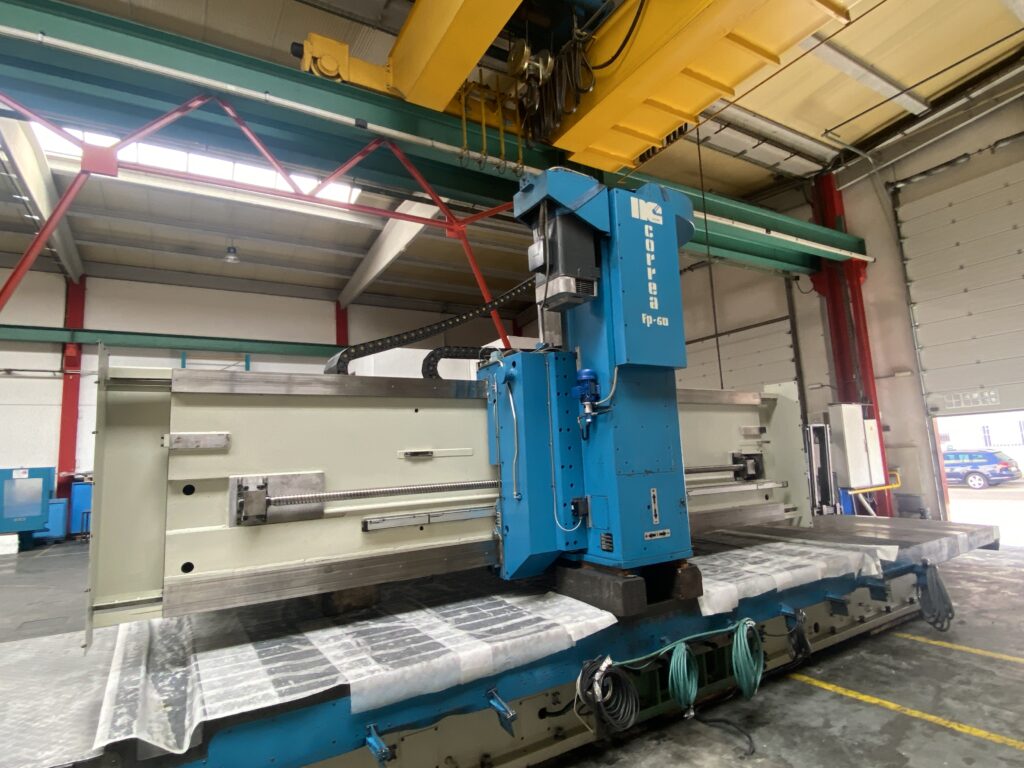

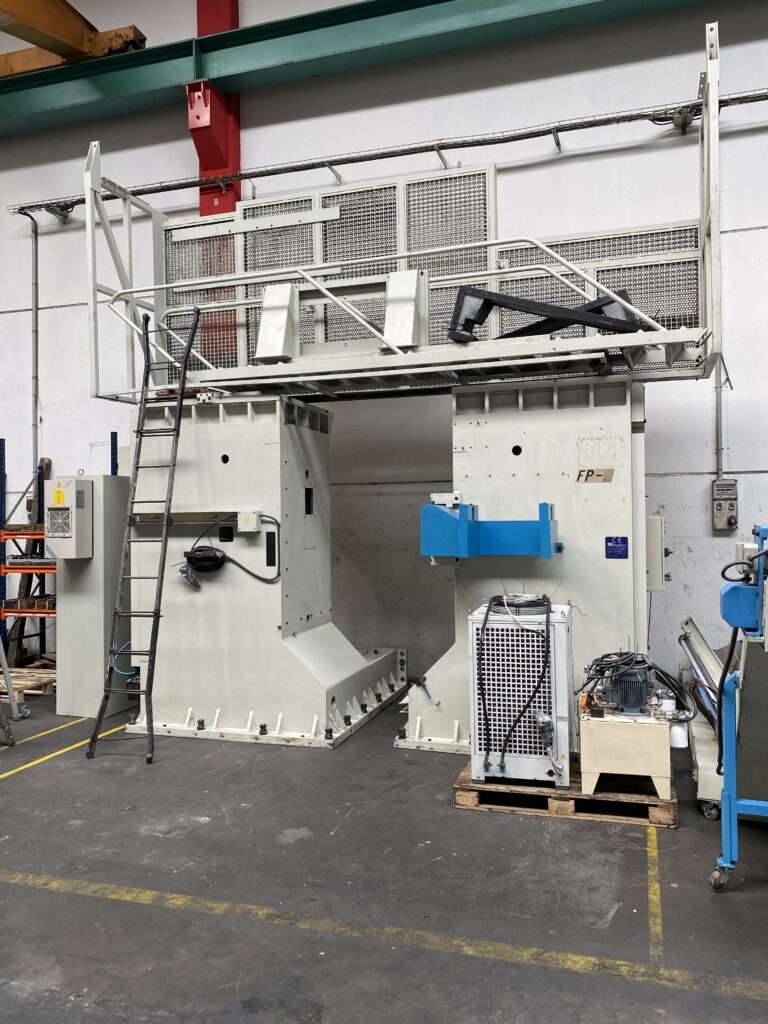

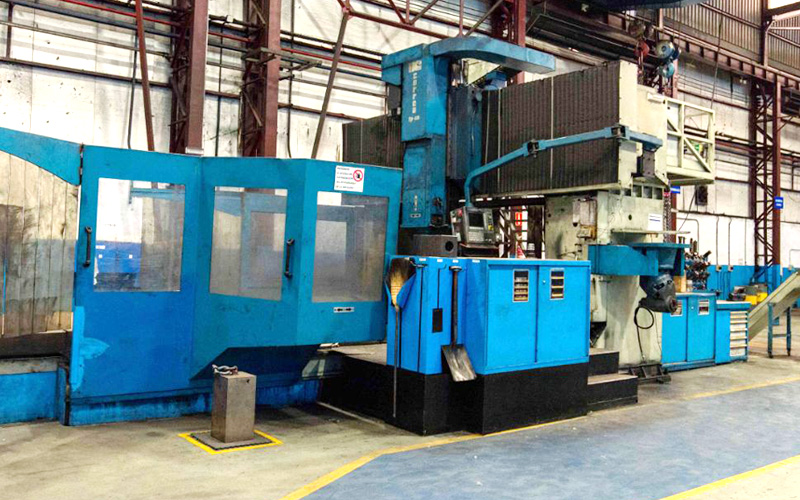

Bridge Milling machine CORREA FP-50/50

Ref: 3768
Bridge Milling machine CORREA FP-50/50
Technical features
Travels
Longitudinal travel mm 5.000
Cross travel mm 3.250
Vertical travel mm 1.000
Distance between columns mm   2.700
Table
Dimensions mm  5.000×2.000
Loading capacity Kg   25.000
Head
Type ISO 50
Head speed rpm 5.000
Par Nm 718
Power Kw 37
Feeds
Work feeds mm/min 2 – 7.000
Rapid feeds mm/min 7.200 – 12.000
CNC
HEIDENHAIN TNC 530 New
Equipment
Chip conveyor
Huron head, manual positioning
Several tooling
