CNC Rotary table Tanshing MRNC-255

CNC Rotary table Tanshing MRNC-255
Technical features



Capacity
Table diameter mm 255
Table height (horizontal) mm 167
Center height (vertical) mm 160
Overall height mm 350
Spindle hole diameter mm 32
Center bore diameter mm 40HT
T slot size mm 12HT
Cumulative indexing accuracy 15”
Repeatability 4”
Loading capacity horizontal/vertical Kg 250/100
Loading capacity with tailstock Kg 250
Max. torque Kg-m 48
Rotation speed (motor 2000rpm) rpm 11.1



Equipament

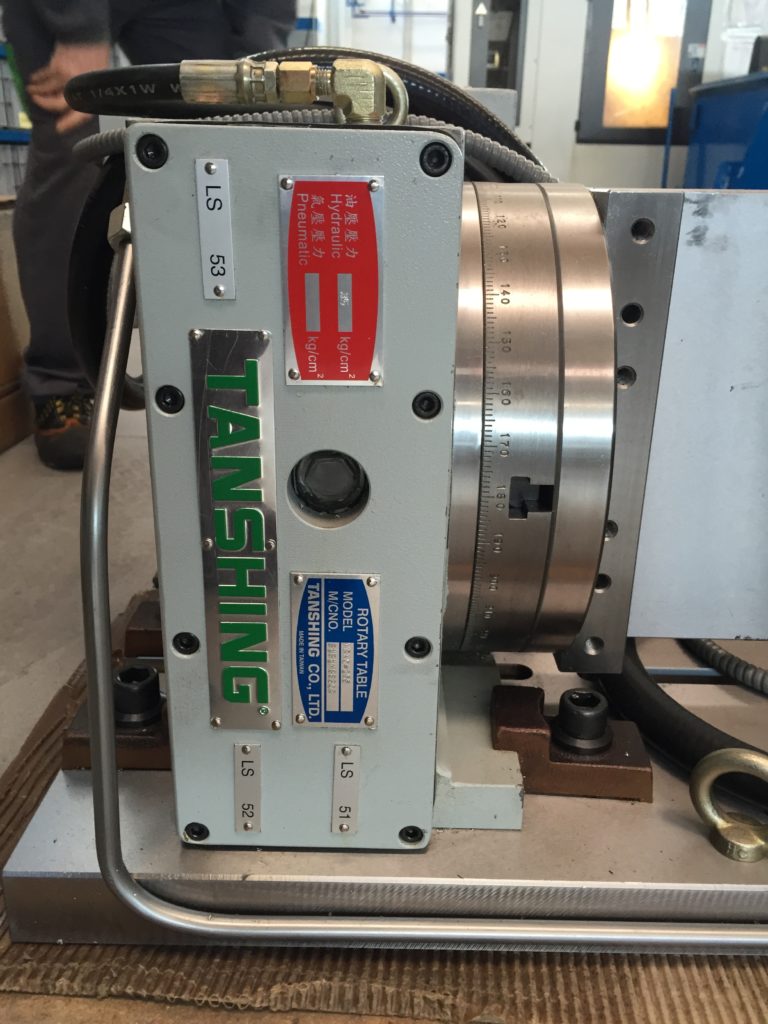

Rotary table

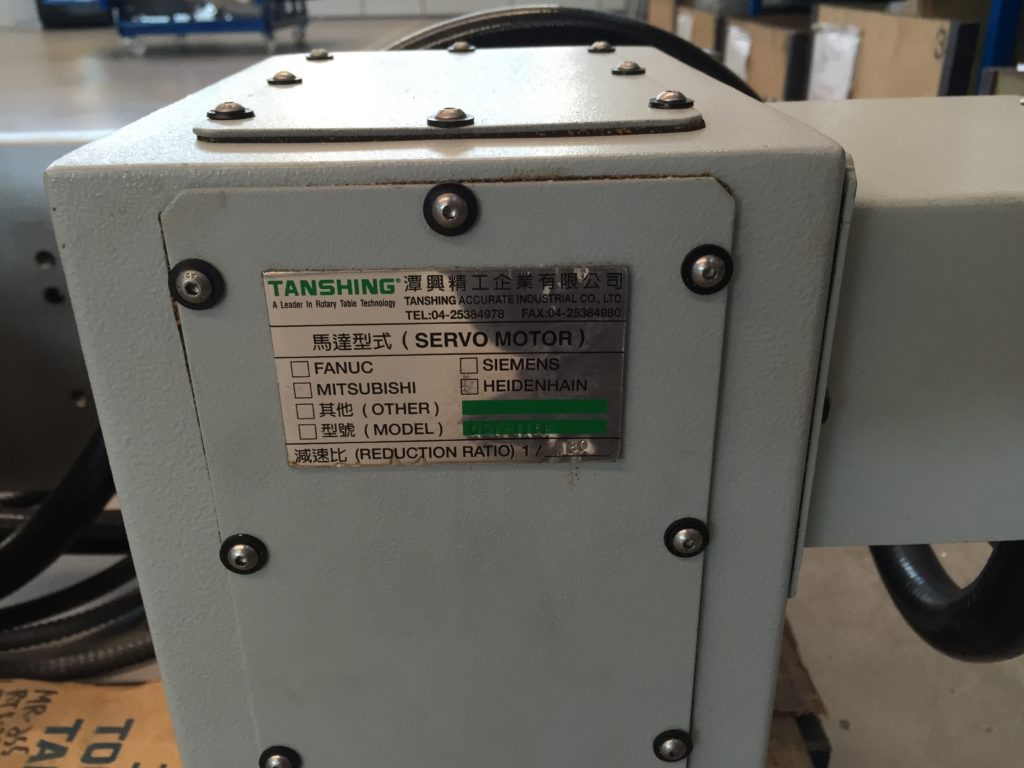

Motor
Regulator
Encoder
Manual tailstock
Hydraulic tailstock
Fixed base “bed” type

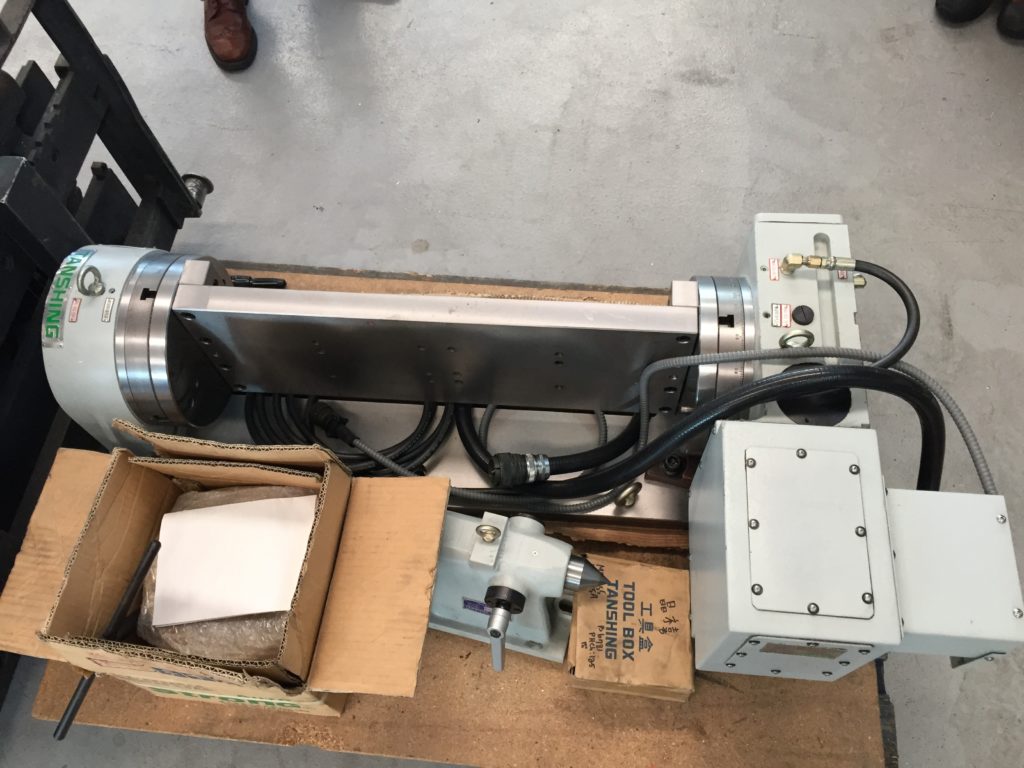

Used Tanshing MRNC-255 CNC rotary table, available for sale.

If you want to buy new or used machines, contact through our form or by calling +34 976 571213 and we will send you a quotation.
