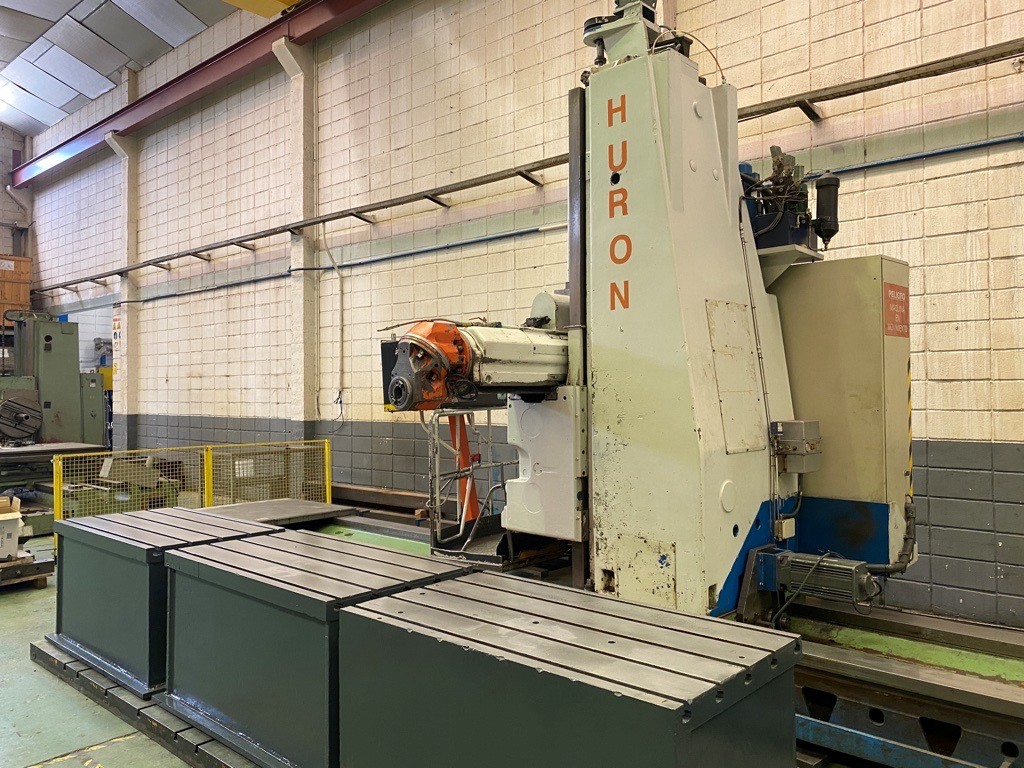

CNC TRAVELLING COLUMN MILLING MACHINE HURON

Ref: 3677
CNC TRAVELLING COLUMN MILLING MACHINE HURON
Technical Features
Travels
Longitudinal Travel X mm 6.570
Vertical Travel Y mm 1.880
Travel Z mm 1.170
Table
Tabletop with one plate (in two pieces) with levelling holes mm 5.600×1.550×1.000
Head

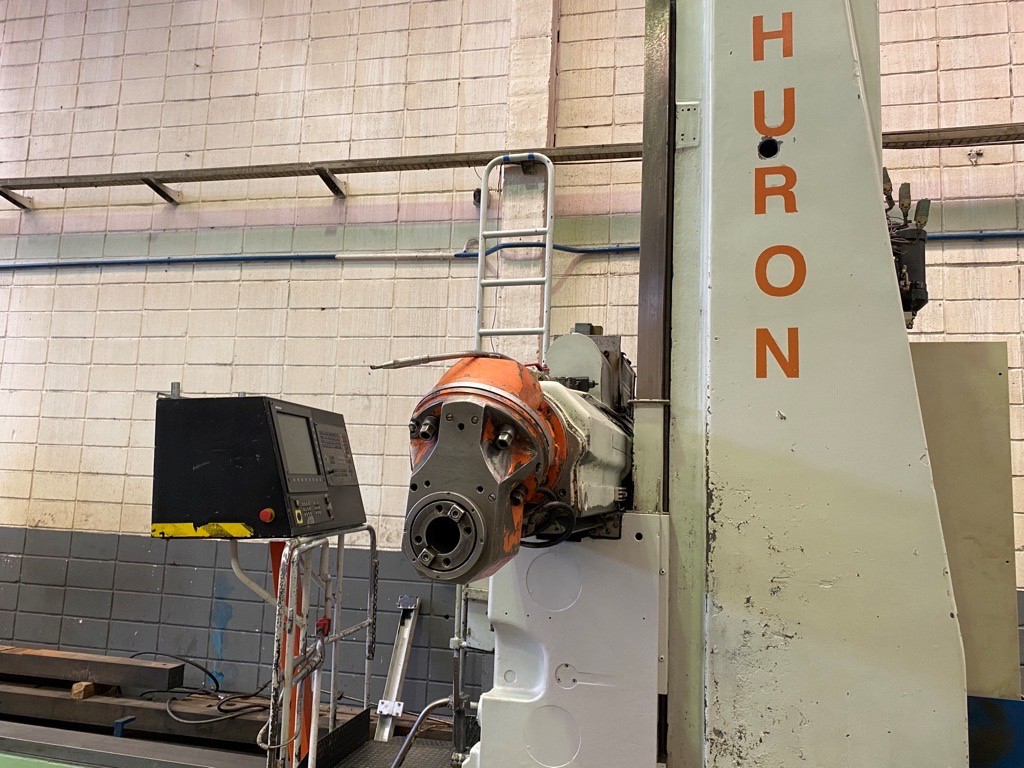

Universal Head (hydraulic clamping) ISO 50
Head Speed rpm 2.000
Box ZF (2 ranges)
Range 1 rpm De 0 a 491
Range 2 rpm De 492 a 1960
Power Kw
Equipment
Fagor controllers and motors INCLUIDO
Centralised lubrication INCLUIDA

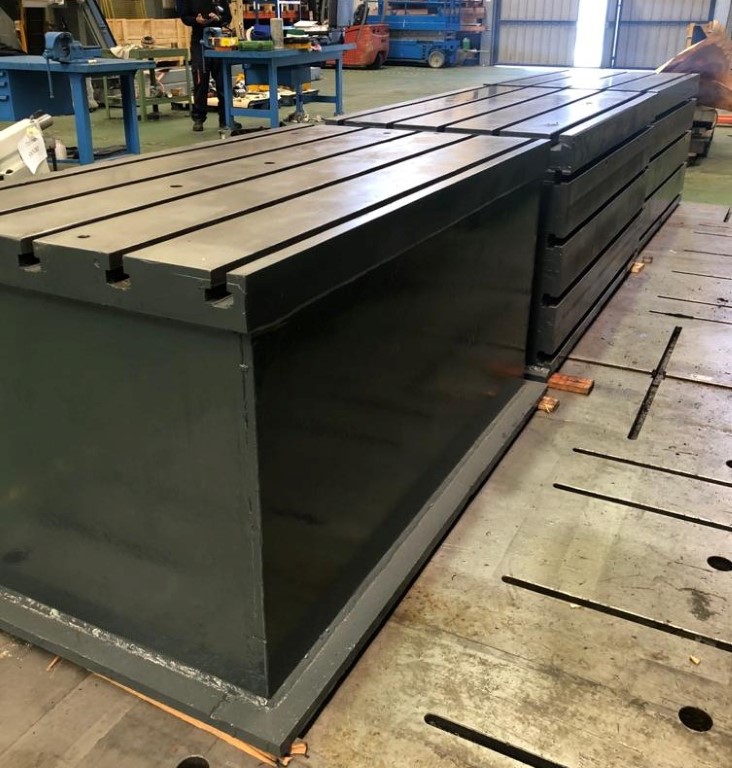

3 cubes 1,400x800x475 (H) mm with 5 slots 23 mm horizontal/vertical
Notes
CNC retrofitting 2007: The original mechanical spindle drives were removed and replaced by a spindle motor with a ZF gearbox, with independent cooling circuit.

New spindle motors and Fagor controllers were installed.
